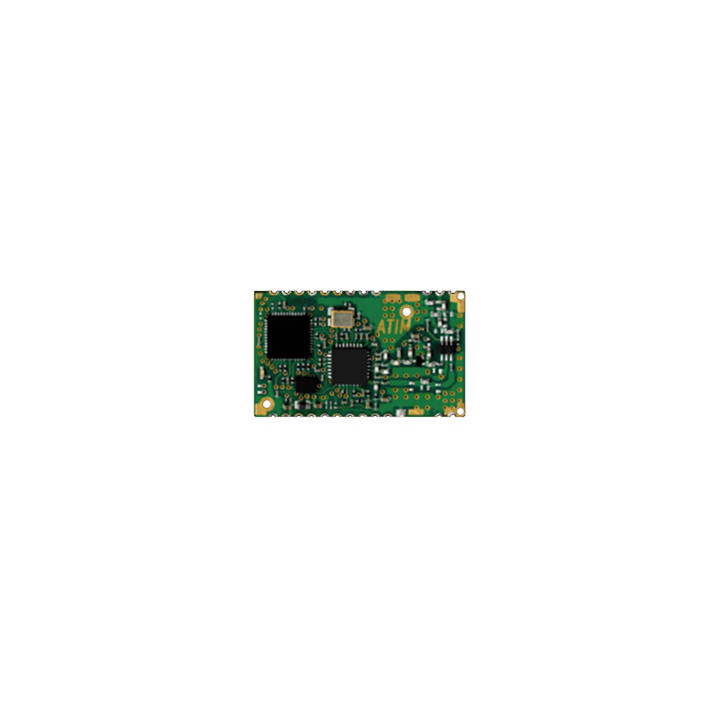

Transceiver radio 868MHz longue portée ARM-N8-LD ATIM

Le module radio ARM-N8-LD 868MHz est optimisé pour des communications point-à-point ou point-à-multipoints (longues distances à bande étroite).


Caractéristique techniques:

- Dimensions 30 x 18 x 2,5 mm (25 pins)
- Radio Regulation EN 300 220 V2.4.1
- Operating Temp -20°C to +70°C
- Modulation 2GFSK / 4GFSK
- Sensitivity -122dBm @1,2kbps BER10-3
- Range >20 km (FEL)
- Frequency 863 – 870 MHz
- Output power max 500 mW (27 dBm)
- Data rate 100 bit/s to 115,2 Kbit/s
- Radio consumption (Tx) 500 mA (27dBm)
- Sleep consumption 1µA (ARM N8LP), 2.5 µA (ARM N8LD)
- Radio consumption (Rx) 26 mA
- Interface (max) UART (0,2MHz)/SPI (1,3MHz)
- Setup AT cmds / SPI cmds / Modbus registers
- Features LBT, AFA, FastUARTwakeUp, WakeOnRadio, Repeater
